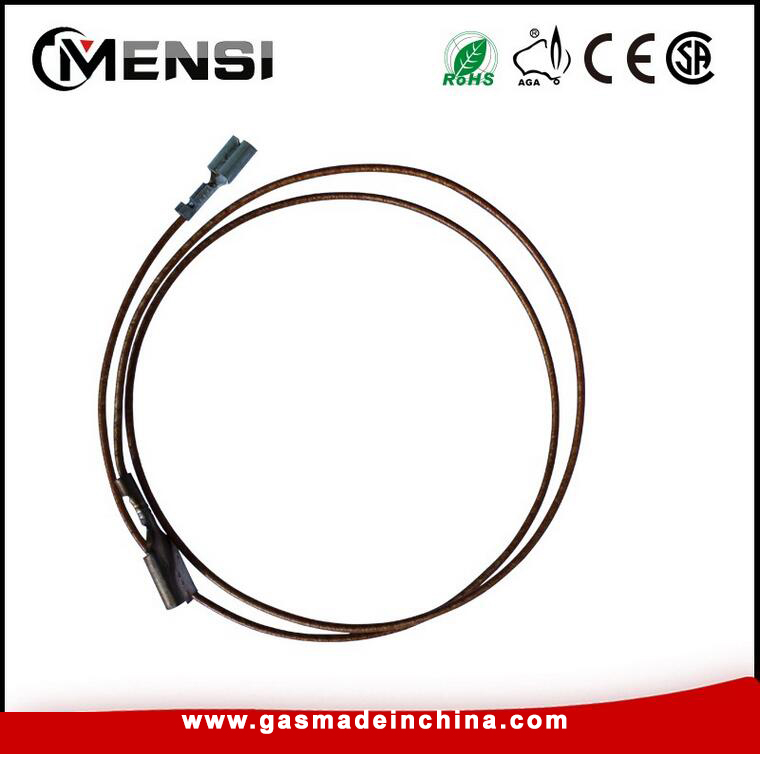

Thermocouple wire

Product number:ESTH-005

Quick Overview: Gas thermocouple installation precautions 1. With a thermocouple stove requirements installed in a well-ventilated kitchen, it minimum distance of 1m with the cylinder, but the maximum length of the intake hose should not exceed 2m, stove below and around do not stack flammable items. 2. with a thermocouple of the stove should be placed in the stove is not easy to burn, the height of the stove is generally 70cm. It should be placed in a smooth, under the air into the stove embedded in the installation of cooking stove to be used in the cabinet side wall or anterior wall to open a considerable area of 80cm air inhalation holes, in order to prevent rats from entering the metal mesh should be installed when the device is equipped with the following Baffle, the battery should be reserved for replacement. 3. Stove the back of the wall with a net distance of not less than 10cm, the side wall from the wall is not less than 20cm; if the wall is flammable material, to be affixed to the fire insulation layer, the fire side and stove more Part of not less than 20cm, more than a part of the stove is not less than 80cm. 4. Intake pipe connection must be sealed with a hose connection must take the hose in place, and clamped with a clamp, with soap liquid check should be no leakage. Gas stove with thermocouple In the use of pulse ignition stove, before use should be installed according to positive and negative requirements of the battery. When using the ignition of the "pop" sound becomes slow, the point does not fire, or even point the fire immediately go out, you should replace the battery.
