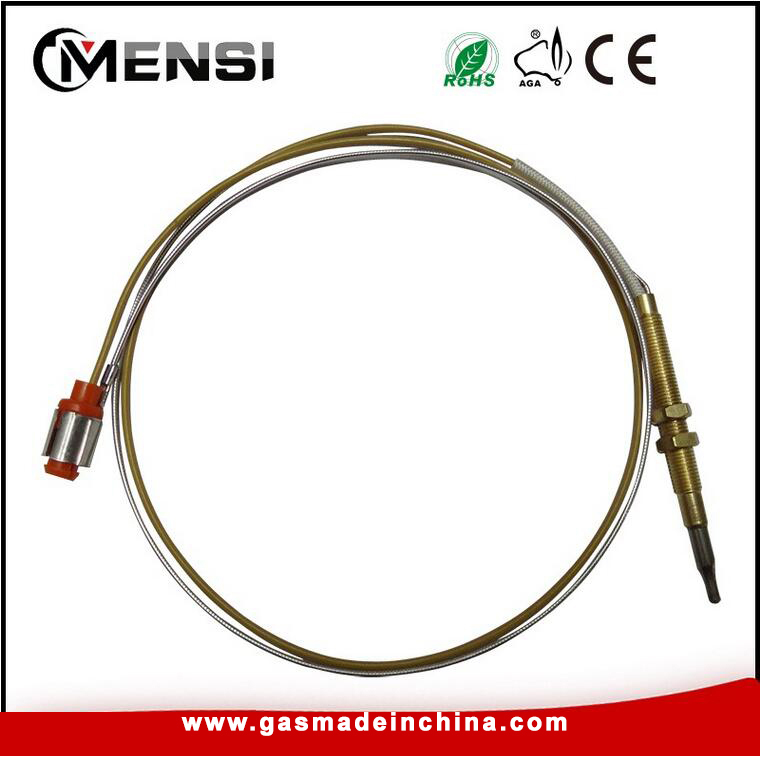

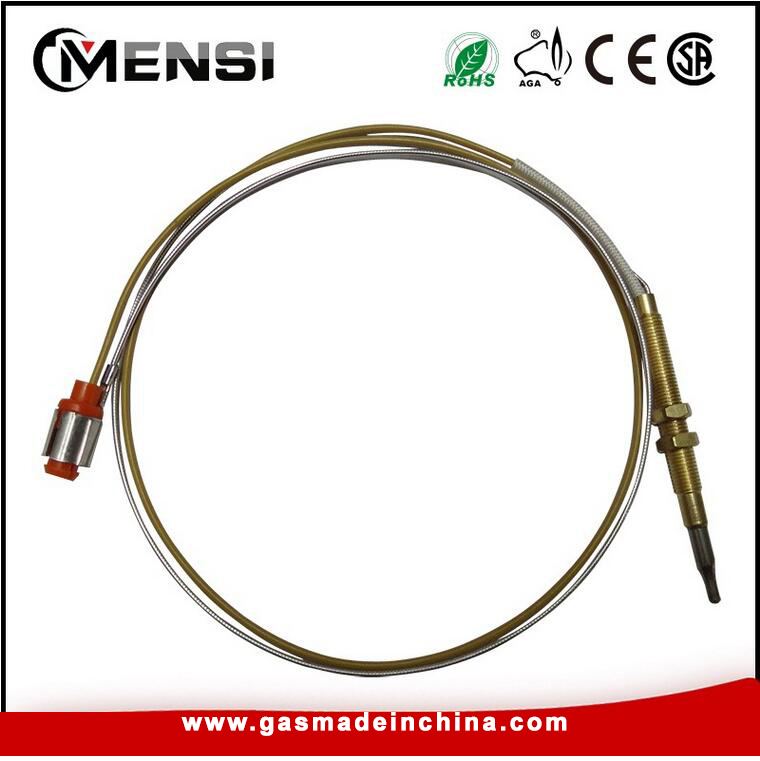

Oven thermocouple
Product number:ESTH-015
Quick Overview: Gas oven thermocouple installation precautions 1. With a thermocouple stove requirements installed in a well-ventilated kitchen, it minimum distance of 1m with the cylinder, but the maximum length of the intake hose should not exceed 2m, stove below and around do not stack flammable items. 2. with a thermocouple of the stove should be placed in the stove is not easy to burn, the height of the stove is generally 70cm. It should be placed in a smooth, under the air into the stove embedded in the installation of cooking stove to be used in the cabinet side wall or anterior wall to open a considerable area of 80cm air inhalation holes, in order to prevent rats from entering the metal mesh should be installed when the device is equipped with the following Baffle, the battery should be reserved for replacement. 3. Stove the back of the wall with a net distance of not less than 10cm, the side wall from the wall is not less than 20cm; if the wall is flammable material, to be affixed to the fire insulation layer, the fire side and stove more Part of not less than 20cm, more than a part of the stove is not less than 80cm. 4. Intake pipe connection must be sealed with a hose connection must take the hose in place, and clamped with a clamp, with soap liquid check should be no leakage. Gas stove with thermocouple In the use of pulse ignition stove, before use should be installed according to positive and negative requirements of the battery. When using the ignition of the "pop" sound becomes slow, the point does not fire, or even point the fire immediately go out, you should replace the battery.
Send Inquiry
PDF DownLoad
Product Description
Advantages
Product Application: gas oven,gas heater, gas stove, gas fire pit,gas cookers,gas barbecue,etc.
Export Country: European,North America and Middle East
Product Certification: With ISO9001:2008,CE&CSA certification.
Applicable gas families: LPG/propane/butane
Gas Thermocouple Safety Protection System
Working Principle: A thermocouple consisting of two pieces of dissimilar metals joined together at one end (hot junction). When the hot junction is heated, the thermocouple produces DC voltage to the other end. It powers thermoelectric gas valves and when used is a safety feature on gas hearth products. Loss of the pilot can removes the electrical current and shuts off the gas supply to the burner.
When heated,the closed circuit voltage should ≥12mv and ≤15mv,open circuit voltage ≥25mv and ≤30mv
Heat potential should ≥12mv and ≤15mv when temperature ratings 416° to 760°C, cold junction to hot junction
Cooling Characteristic ≤ 1.5 mv when 1.5min if it heated for 5min and then cut off the power.
2)Ambient temperature: the top temperature is lower than 760℃ and the other parts lower than 200℃
3) Inner resistance: Accord to its type and length and the tolerance is in ±15% as is requested.
4) Length according to request of customers
Forehead & terminal according to request of customers
Installation Remark
Product Application: gas oven,gas heater, gas stove, gas fire pit,gas cookers,gas barbecue,etc.
Export Country: European,North America and Middle East
Product Certification: With ISO9001:2008,CE&CSA certification.
Applicable gas families: LPG/propane/butane
Gas Thermocouple Safety Protection System
Working Principle: A thermocouple consisting of two pieces of dissimilar metals joined together at one end (hot junction). When the hot junction is heated, the thermocouple produces DC voltage to the other end. It powers thermoelectric gas valves and when used is a safety feature on gas hearth products. Loss of the pilot can removes the electrical current and shuts off the gas supply to the burner.
Technical Data
1) Thermal potential:When heated,the closed circuit voltage should ≥12mv and ≤15mv,open circuit voltage ≥25mv and ≤30mv
Heat potential should ≥12mv and ≤15mv when temperature ratings 416° to 760°C, cold junction to hot junction
Cooling Characteristic ≤ 1.5 mv when 1.5min if it heated for 5min and then cut off the power.
2)Ambient temperature: the top temperature is lower than 760℃ and the other parts lower than 200℃
3) Inner resistance: Accord to its type and length and the tolerance is in ±15% as is requested.
4) Length according to request of customers
Forehead & terminal according to request of customers
Installation Remark
Thermocouple heated part must be heating on tip 3 to 5mm. pls do not put tip into flame,it will be arouse electric decline and life short.Keep radiating well for thermocouple fixed place backer and plus-minus thread. Decline the accumulative heat of fix broad and thermocouple copper coat.It is benificial to the closing valve time.
