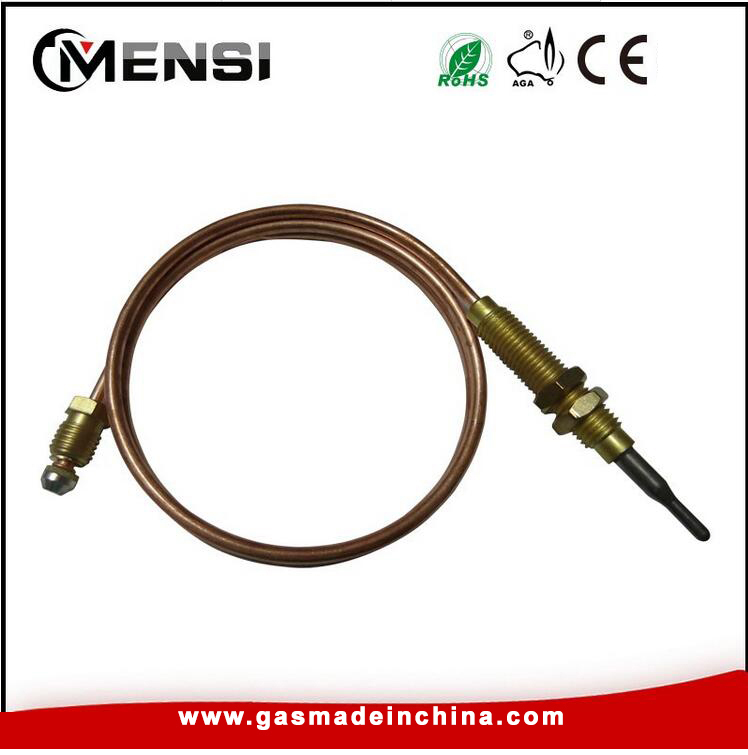

Gas patio heater thermocouple
Product number:ESTH-010
Quick Overview: Thermocouple is a temperature sensor, is an instrument, it directly measures the temperature, and the temperature signal into a thermoelectric power signal, through the electrical instrument (secondary instrument) into the measured medium temperature.
Send Inquiry
PDF DownLoad
Product Description
Propane patio heater Thermocouple can be Used in gas cooker,oven, water heater etc.
First class quality
Technology parameter
(1) Thermal potential
·heat characters: the temperature of thermocouple on flame is 600-700 and the heat potential should≥20mv
·cool characters: the temperature of thermocouple on flame is 600-700. The heat potential should be≤1.5mv when 1.5min if it heated for 5min and then cut off the power.
·work temperature: the top temperature is lower than 700 and the other parts higher than 125
(2) Inner resistance
·accord to its type and length and the tolerance is in ±10% as is requested.
(3)Length
according to request of customers
First class quality
Technology parameter
(1) Thermal potential
·heat characters: the temperature of thermocouple on flame is 600-700 and the heat potential should≥20mv
·cool characters: the temperature of thermocouple on flame is 600-700. The heat potential should be≤1.5mv when 1.5min if it heated for 5min and then cut off the power.
·work temperature: the top temperature is lower than 700 and the other parts higher than 125
(2) Inner resistance
·accord to its type and length and the tolerance is in ±10% as is requested.
(3)Length
according to request of customers
(4)Forehead & terminal
Usage and charaters:
Product Name:Patio heater thermocouple
Item No: ESTH-010
ication country: Europe, North America
Certification:CE/CSA
Applicable gas families:LPG/propane/butane
